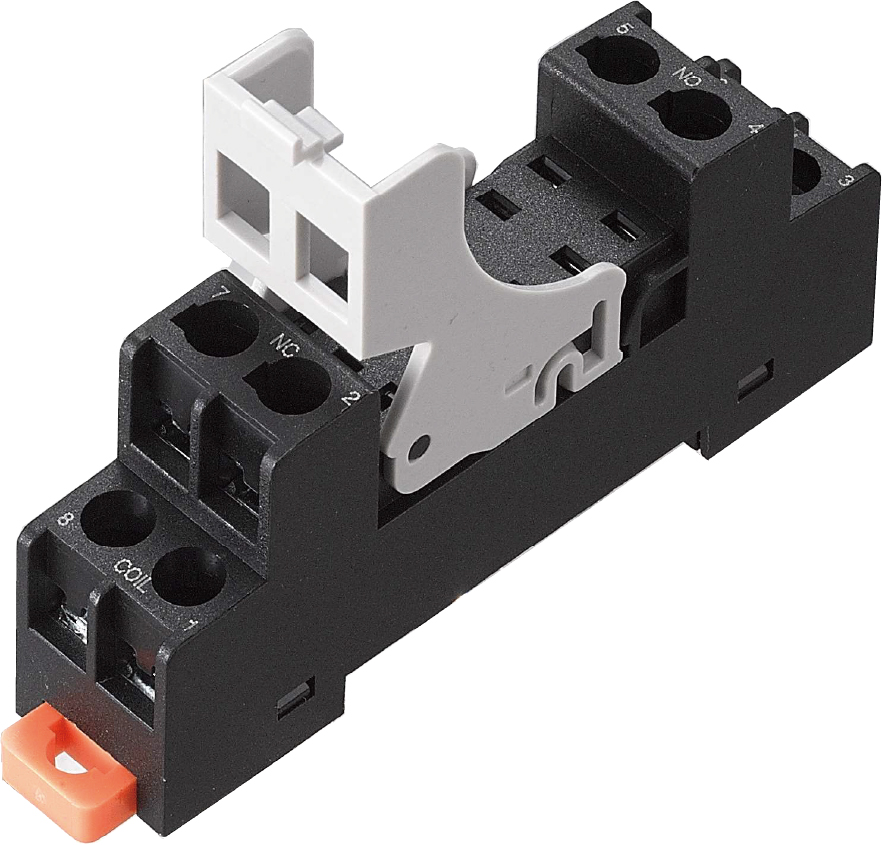

CSN-RB14F Series Relay Base for CSN-R14F Relays / CSN-RB14F系列大功率中间继电器插座
| 型号Model number | CSN-RB14F-05 | CSN-RB14F-08 | |||
| 电流 | A | 16 | 10 | ||
|
额定负载Rated load |
电压 | V | 300 | 300 | |
| 线圈/触点 | V/min | 4000 | 4000 | ||
| 介质耐压Dielectric withstand voltage | 触点间 | V/min | |||
| 2500 | |||||
| 2500 | |||||
| 螺钉扭矩Screw torque | Nm | 1.0 | |||
| 外连接导线External connecting conductor | AWG/mm2 | 20-14/0.5-2.5 | |||
| 使用环境Use environment | ℃ | -40~+85 | |||
| 重量weight | G | 24 | 29 | ||
| 外形尺寸图External Dimensions（mm) | ||
 |
||
 |
|
|
| CSN-RB14F-05 | CSN-RB14F-08 | |
| 接线图 Wiring Diagram | |
|
|
|
| CSN-RB14F-05 | CSN-RB14F-08 |
CSN-RB14F Series Relay Base for CSN-R14F Relays / CSN-RB14F系列大功率中间继电器插座
